Scenario of measurement performed at Nivelles (Belgium) on October 2023

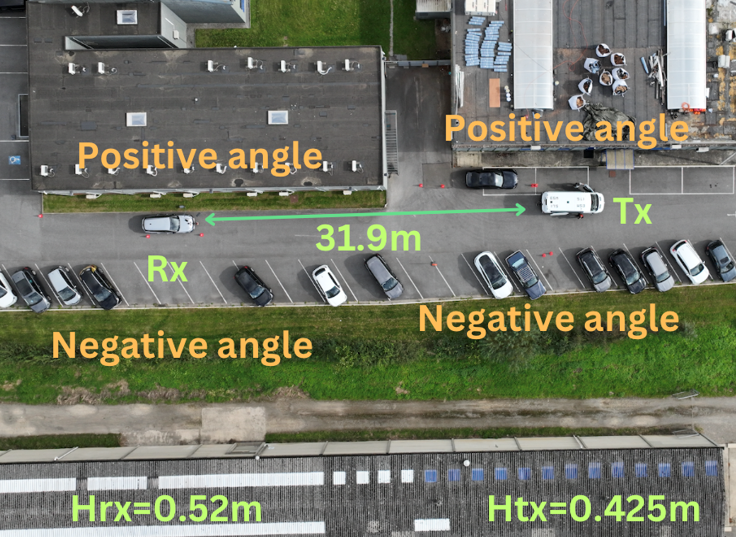

Scenario with multiple reflectors (cars, windows, walls) and transceivers separated by more than 30 m
The RX was located in the vehicle on the right side of the figure (Ford Transit), the TX was located in the vehicle on the left side of the figure (Peugeot). Each node had a gimbal that was mechanically steered to a desired angle. Both gimbals were rotated only in their yaw axis. We denote \(\alpha_{TX}\) , the yaw angle of rotation of the gimbal at the TX. Equivalently, we denote \(\alpha_{RX}\) , the yaw angle of rotation of the gimbal at the RX.
The heights for the TX antenna and RX antenna were, 42.5cm and 52 cm, respectively.
The coordinates for the TX node were: 50.58641, 4.35453
The coordinates for the RX node were: 50.58669, 4.35454
Results
Below are shown the Power Angular Profiles over time for the measurements done with the scenario described above, when both gimbal yaw angles were moved to specified values.

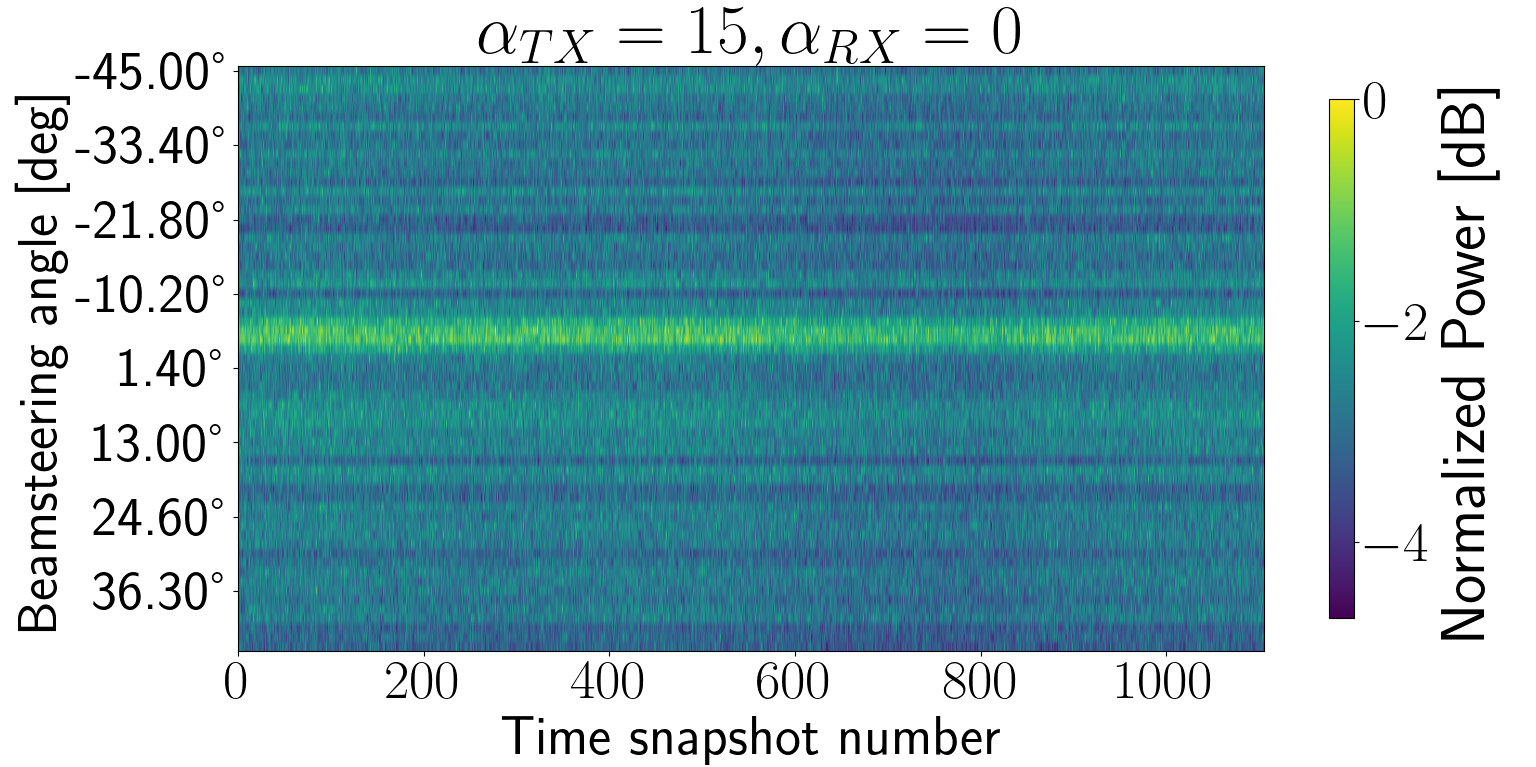

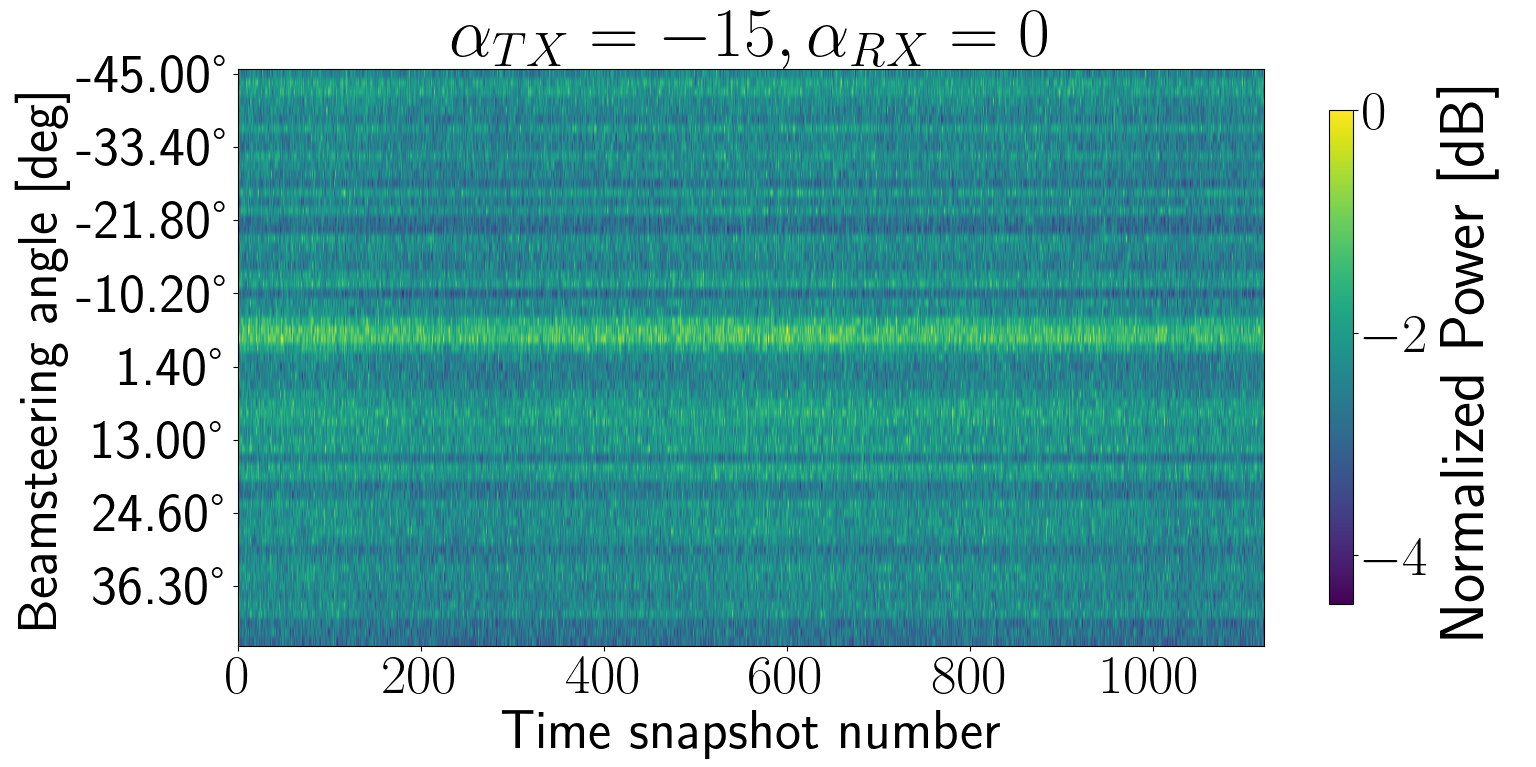

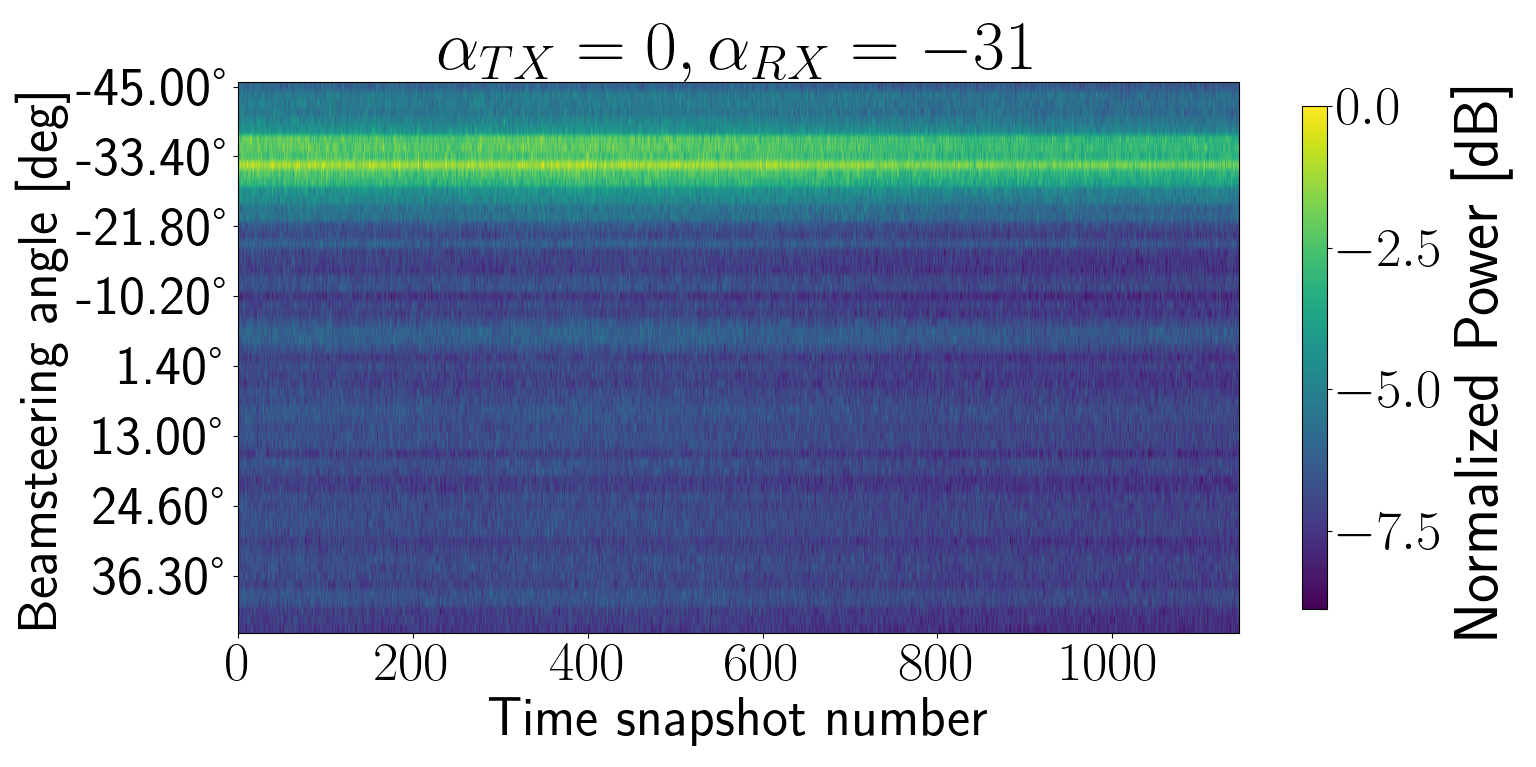

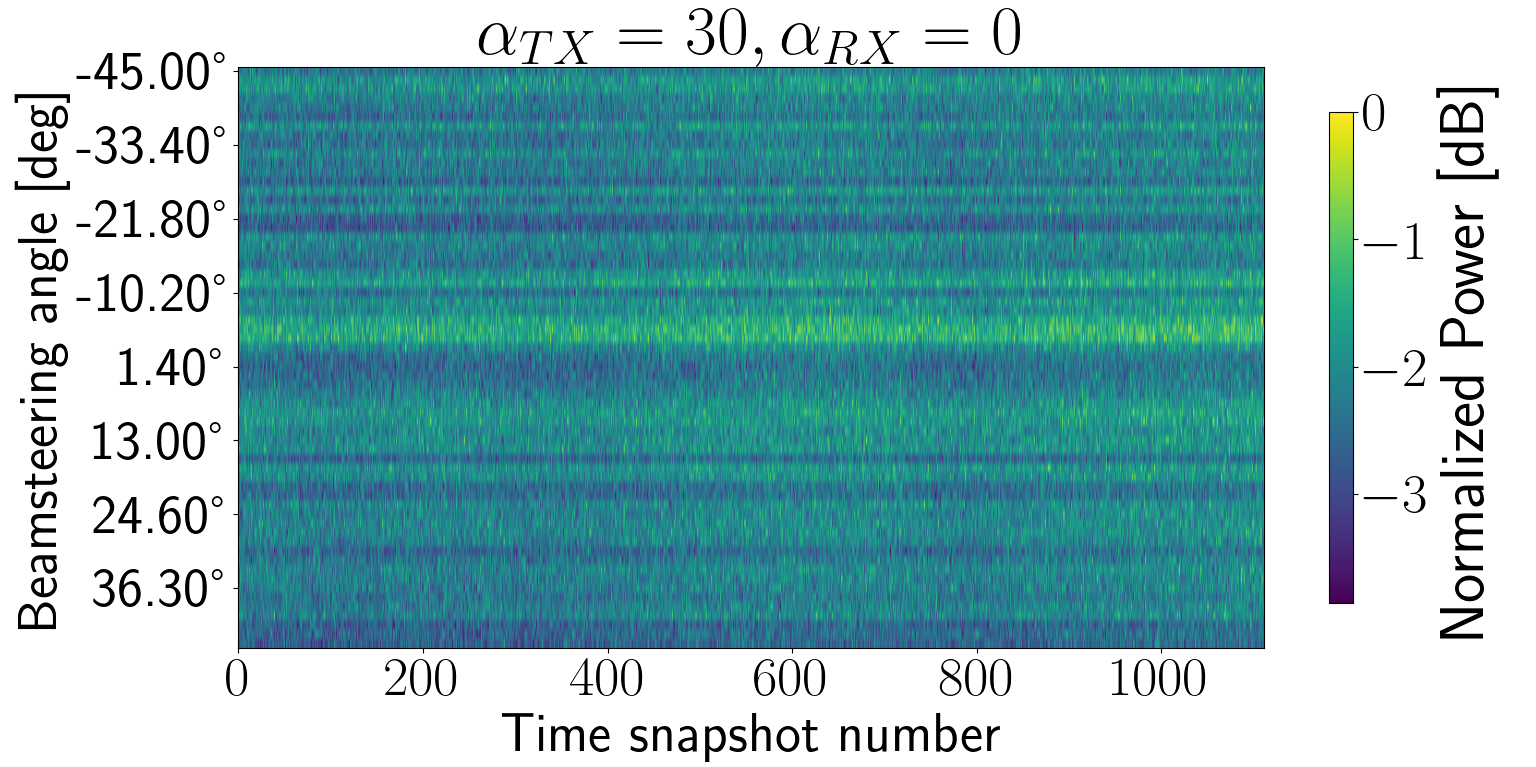

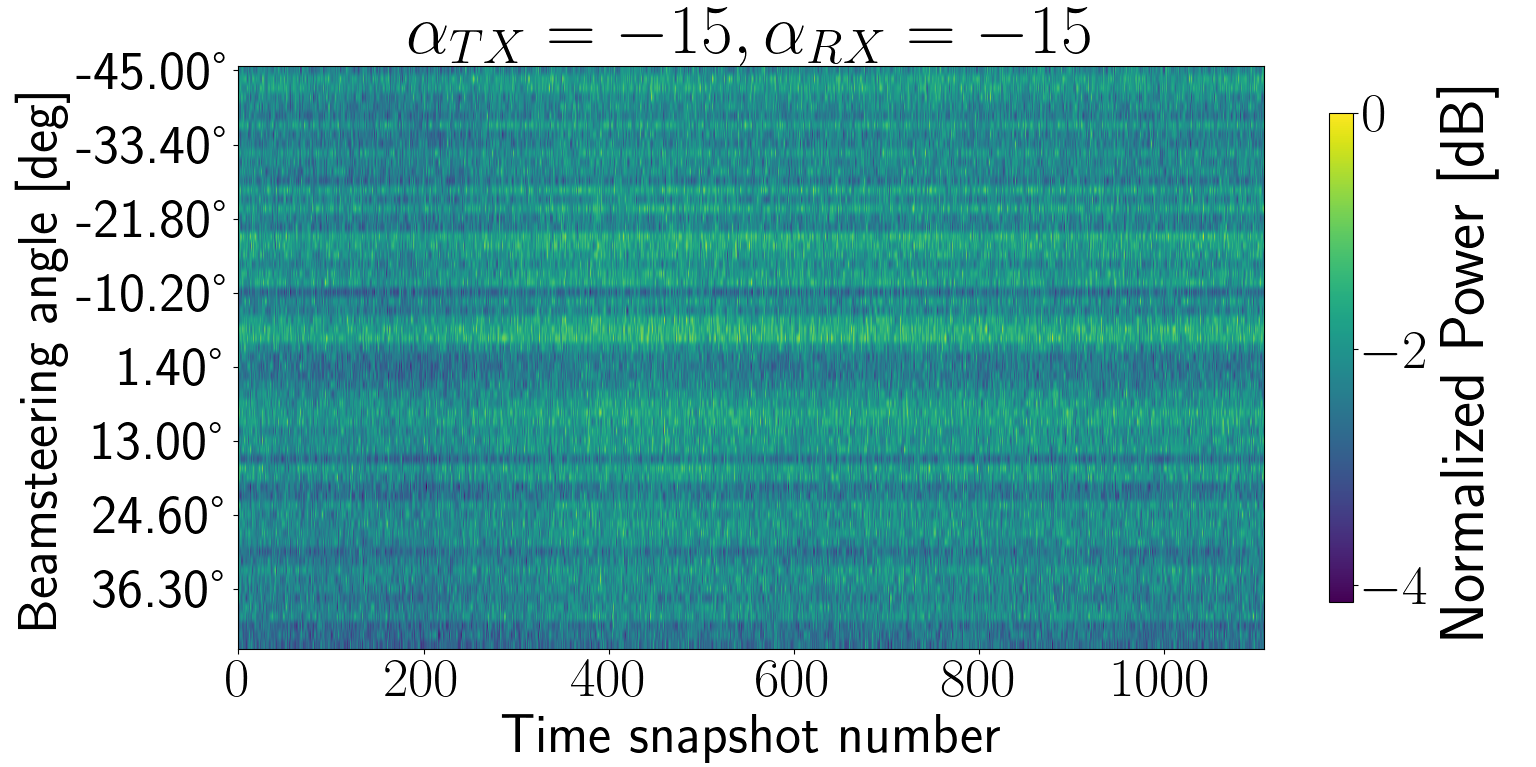

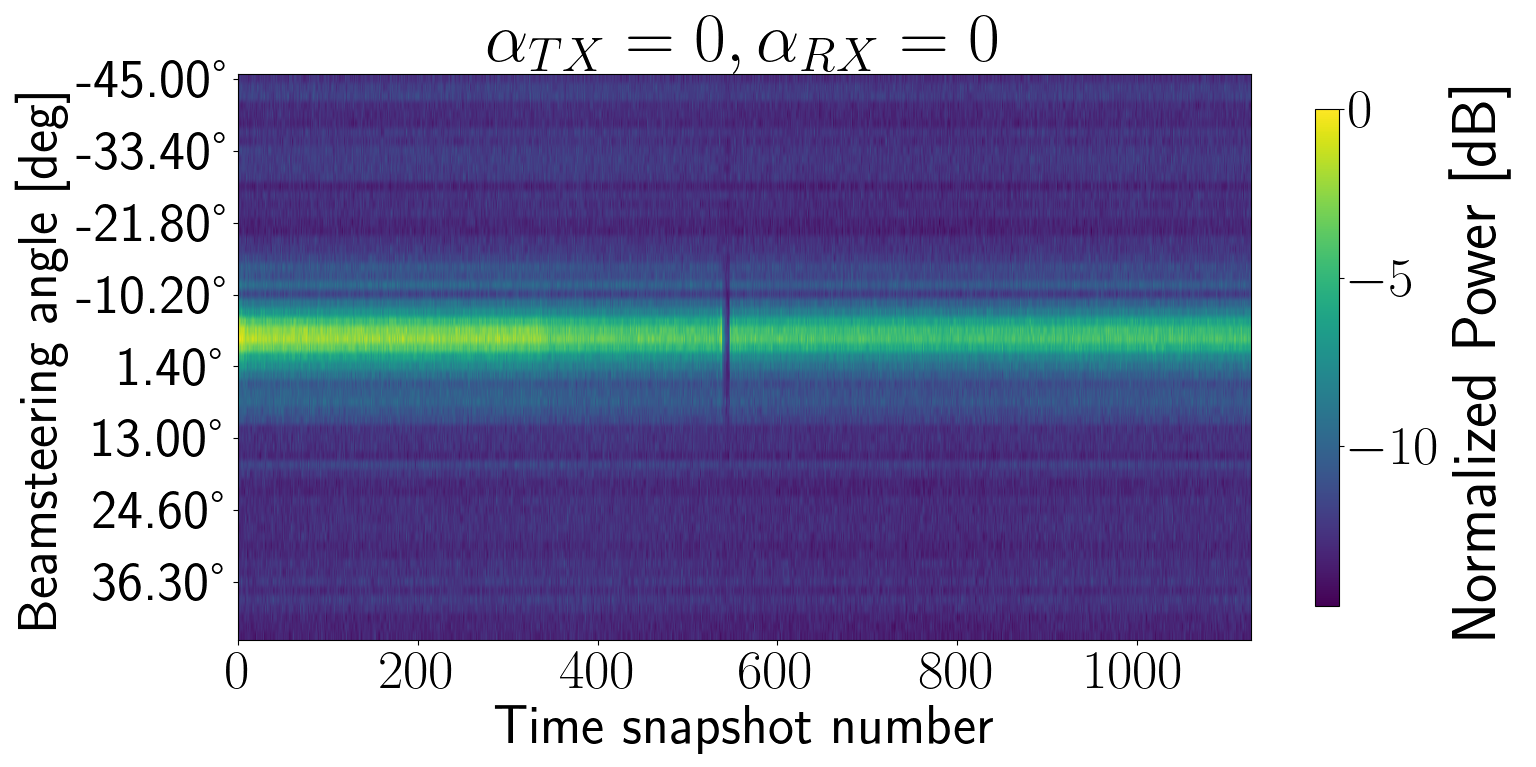

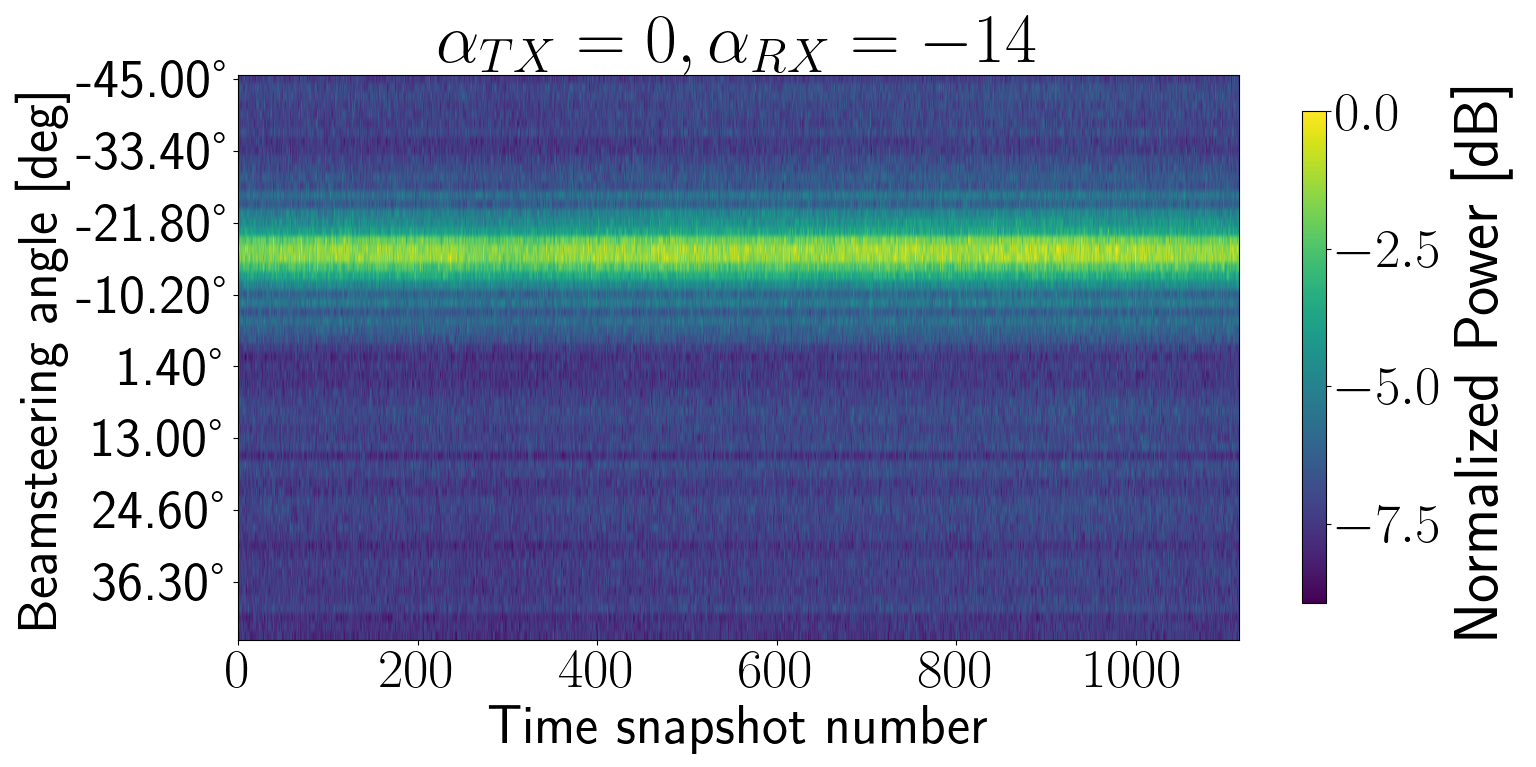

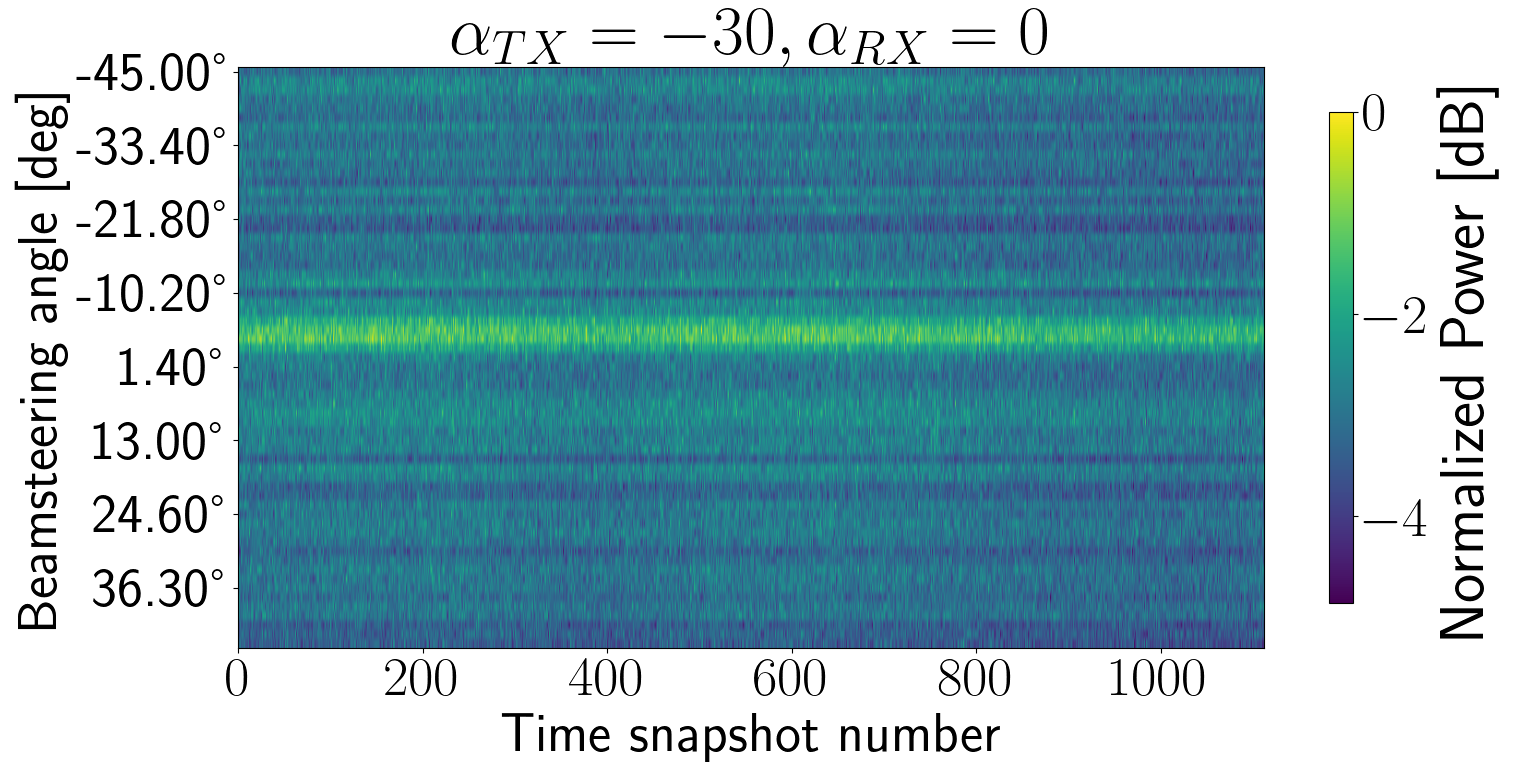

Power Angular Profile over time for $\alpha_{TX} = 0$ deg, $\alpha_{RX} = 0$ deg, with transceiver separation of 31.9 mPower Angular Profile over time for $\alpha_{TX} = 0$ deg, $\alpha_{RX} = -14$ deg, with transceiver separation of 31.9 mPower Angular Profile over time for $\alpha_{TX} = 0$ deg, $\alpha_{RX} = -31$ deg, with transceiver separation of 31.9 mPower Angular Profile over time for $\alpha_{TX} = 15$ deg, $\alpha_{RX} = 0$ deg, with transceiver separation of 31.9 mPower Angular Profile over time for $\alpha_{TX} = 30$ deg, $\alpha_{RX} = 0$ deg, with transceiver separation of 31.9 mPower Angular Profile over time for $\alpha_{TX} = -15$ deg, $\alpha_{RX} = 0$ deg, with transceiver separation of 31.9 mPower Angular Profile over time for $\alpha_{TX} = -15$ deg, $\alpha_{RX} = -15$ deg, with transceiver separation of 31.9 mPower Angular Profile over time for $\alpha_{TX} = -30$ deg, $\alpha_{RX} = 0$ deg, with transceiver separation of 31.9 m
Open space scenario
In contrast to previous scenario, in this scenario there are NO reflectors close to the transceivers.

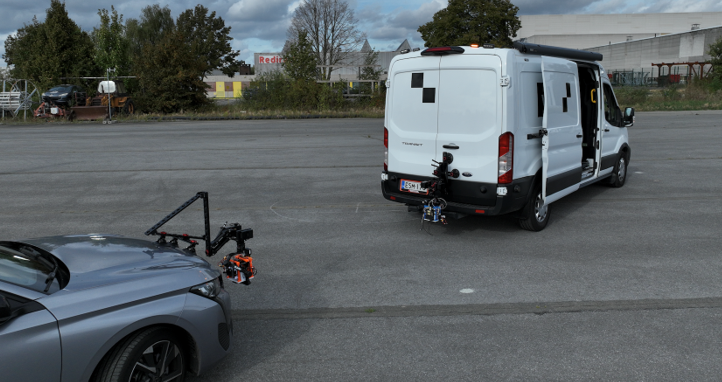

Open space scenario with transceivers separated by less than 9 m
Results

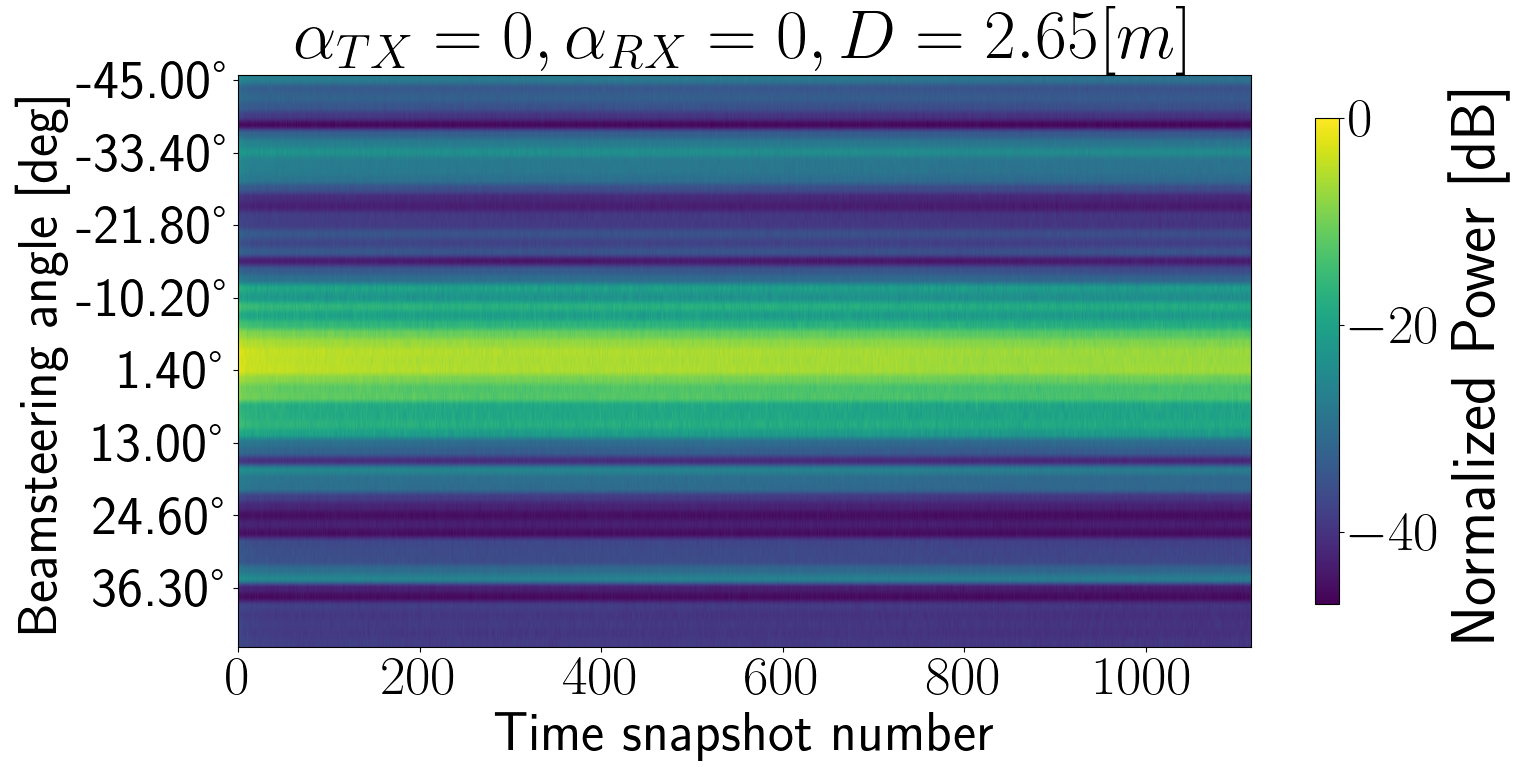

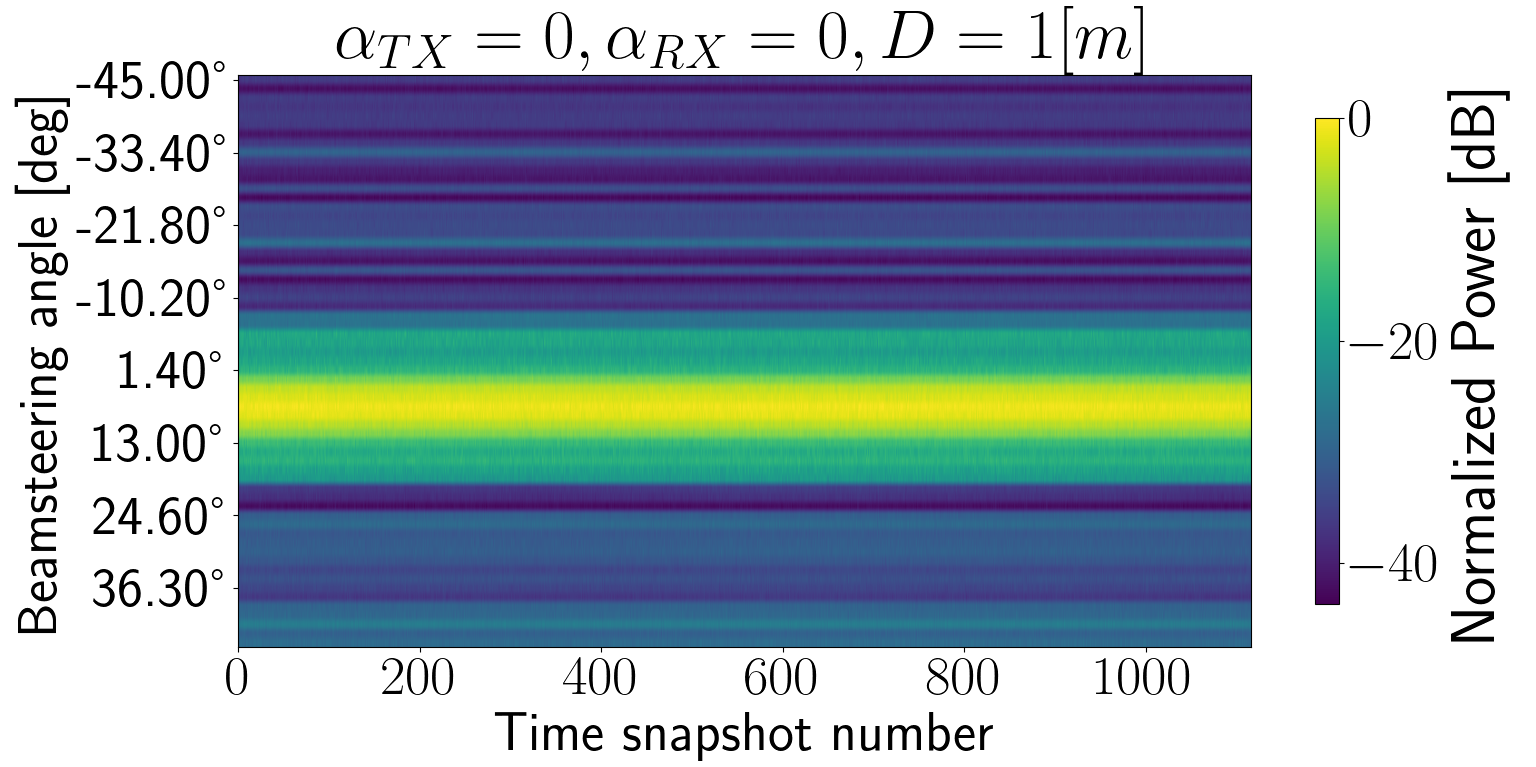

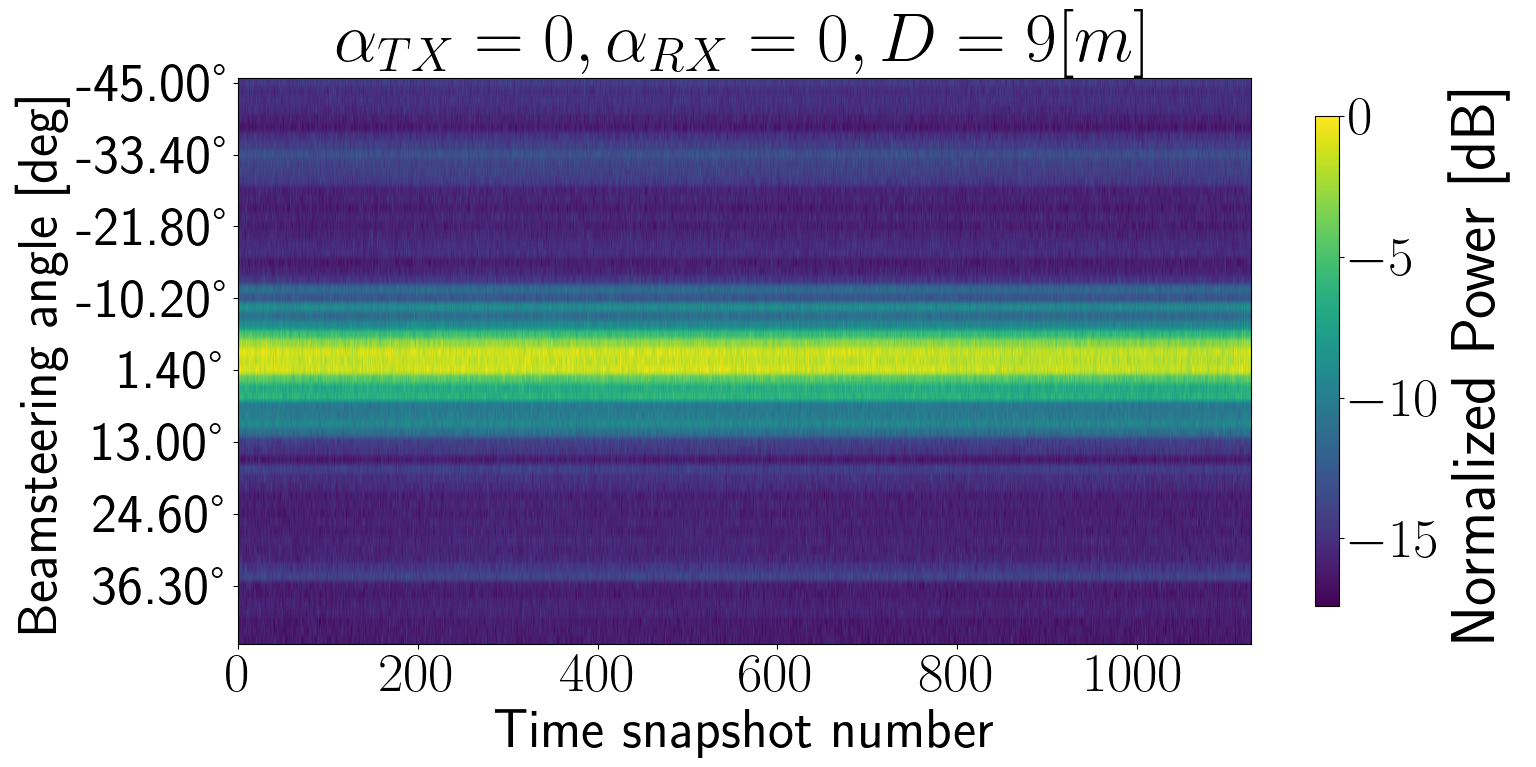

Power Angular Profile over time for $\alpha_{TX} = 0$ deg, $\alpha_{RX} = 0$ deg, with transceiver separation of 1 mPower Angular Profile over time for $\alpha_{TX} = 0$ deg, $\alpha_{RX} = 0$ deg, with transceiver separation of 2.65 mPower Angular Profile over time for $\alpha_{TX} = 0$ deg, $\alpha_{RX} = 0$ deg, with transceiver separation of 9 m
Reproduce the figures
Execute the script named script_extract_padps_v2v_niveless_oct_2023.py to produce the figures in thes page.
